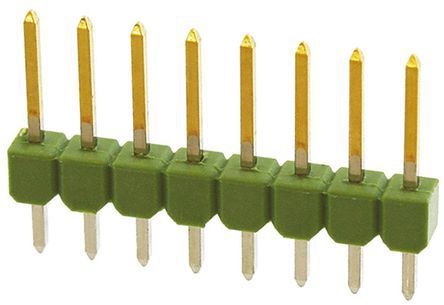

易卖工控网（www.ymgk.com）提供”TE 系列 2.54mm节距 8路 (1排) 直向 PCB 针座, 焊接端接,”，产品详情：品牌/厂家：泰科、型号：PCB针座、成色：全新、货期：期货 7天内发货、保修：180天，更多产品详情就上易卖工控网。
拍前请咨询
| Number of Positions: | 8 |
| Housing Material: | Thermoplastic |
| Contact Plating, Mating Area, Material: | Gold (.1) over Palladium Nickel |
| High Speed Serial Data Connector: | No |
| High Temperature Housing: | No |
| Board Standoff: | Without |
| Brand: | AMP |
| Contact Base Material: | Brass |
| Header Type: | Breakaway |
| Mating Post Length: | mm |
| Panel Mount Retention: | Without |
| PCB Mount Retention: | Without |
| Mounting Ears: | Without |
| RoHS/ELV Compliance: | RoHS compliant |
| RoHS/ELV Compliance History: | Always was RoHS compliant |
| Selectively Loaded: | No |
| Surface Mount Compatible: | No |
| UL Flammability Rating: | UL 94V-0 |
| Mount Type: | Printed Circuit Board |
| Mating Connector Lock: | Without |
| Mount Angle: | Vertical |
| Packaging Quantity: | 500 |
| Row-to-Row Spacing: | mm |
| Lead Free Solder Processes: | Wave solder capable to 240°C |
| Solder Tail Contact Plating: | Tin |
| Number of Rows: | 1 |
| Product Type: | Connector |
| Profile: | Standard |
| Termination Post Length: | mm |
